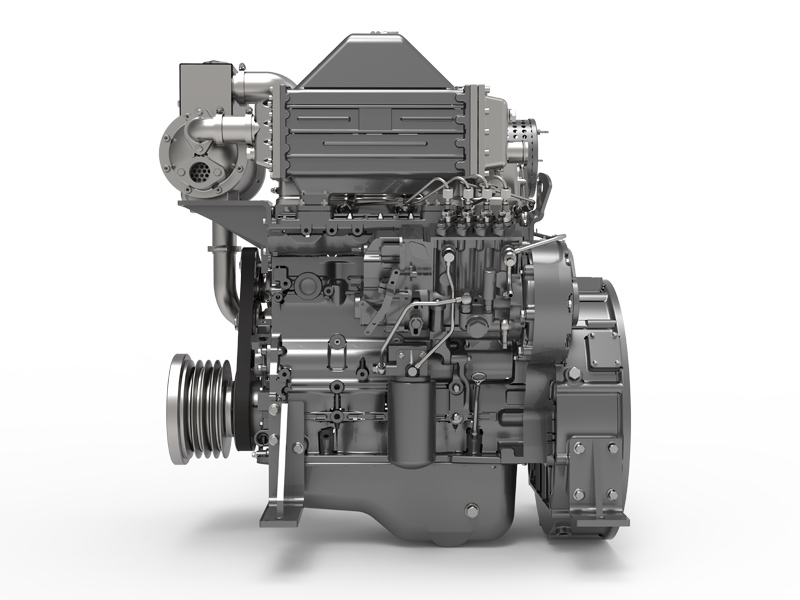

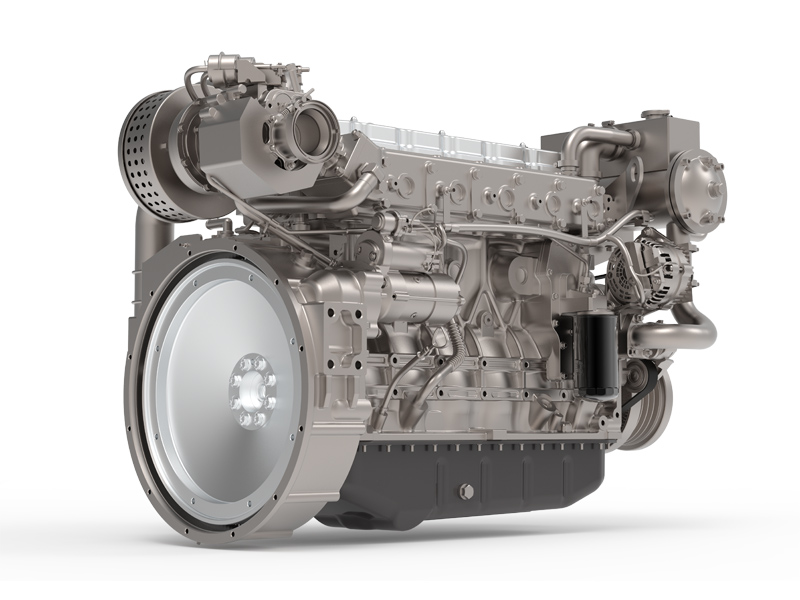

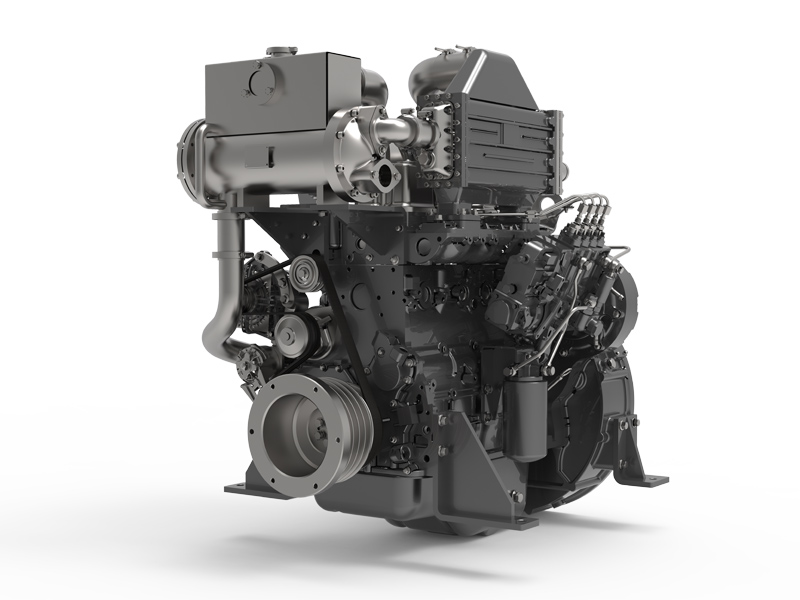

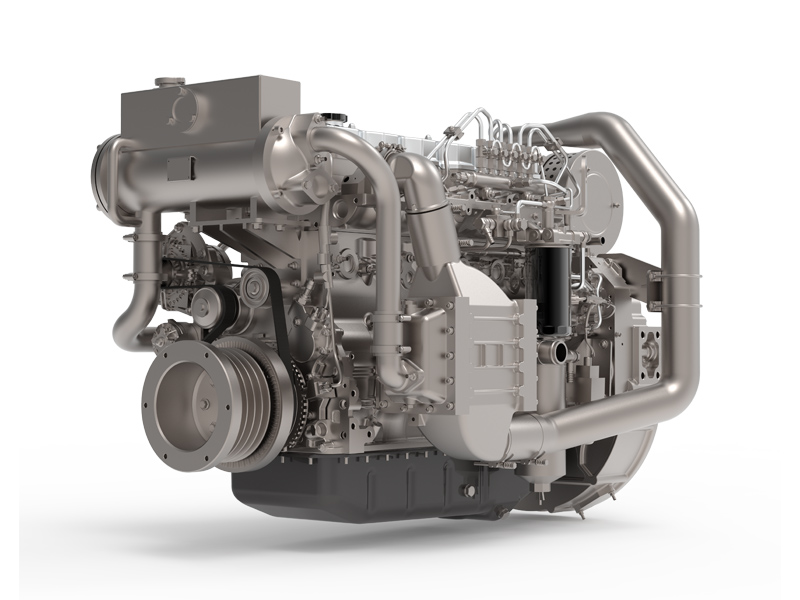

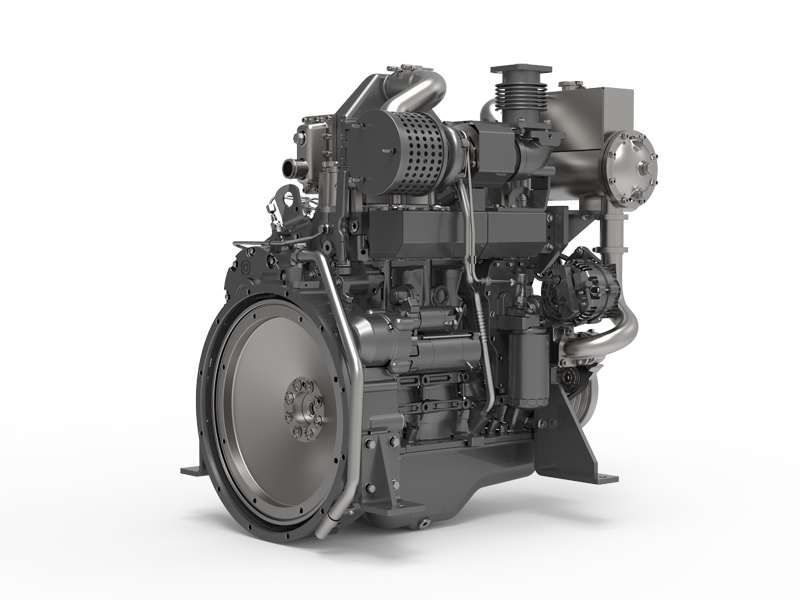

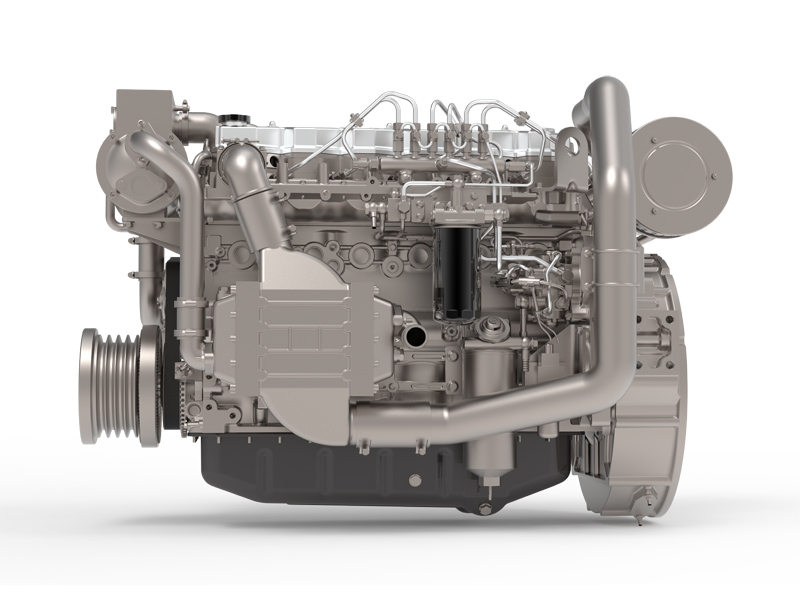

H Series Marine EngineSC4H H Series Marine EngineSC4H H Series Marine EngineSC4H H Series Marine EngineSC7H H Series Marine EngineSC7H H Series Marine EngineSC7H

H Series Marine Engine

Description

The H series marine engine was jointly designed and developed by SDEC and UK Ricardo combining Chinese market demands and internationally proven technologies of advanced Ricardo engines. It is a world first-class power platform manufactured by adopting the GPDP development process and SAIC MOTOR manufacturing standards.

This series marine engine features a compact structure, strong power, low vibration noise, etc., whose technical indexes are all in the leading position in China. It is applied to small inland transportation boat, coastal fishing boat, high speed boat, passenger ship and other ships, as well as 63-162 kW marine generator sets.

Request a Quote
Model SC4H SC7H
Type In-Line Type, Water-Cooled, 4-Stroke, Wet Cylinder Liners
Bore/Stroke 105x124mm
Min. Fuel Consumption 192g/kW.h
Starting Method Electric Start
Firing Sequence 1-5-3-6-2-4
Noise ≤102dB(A)
Crankshaft Rotation Direction (facing the flywheel) Counterclockwise
Cylinder No. 4, 6
Displacement 4.3L/6.5L
Oil Consumption 0.3g/kW.h
Turbocharged CCS/IMOⅡ
Flywheel and Flywheel Housing SAE3#11.5# / SAE1#14#
Engine Overhaul Period 20000h
Net Weight 460kg/675kg
Dimensions (LxWxH) 1047x751x1056mm 1287x730x1180mm
  • With four-valve structure, centrally and vertically arranged fuel injector and new fuel mixing technology, this engine delivers high air intake efficiency, uniform atomization and good load transient response. Its working efficiency is improved by 12%.
  • The maximum torque is over l000N.m, and the torque reserve is as high as 36%, which is 20% higher than similar products.
  • The power and economy are both considered under common working conditions, and the minimum fuel consumption is 192g/kW.h.
  • A 180 BAR high combustion pressure design makes its environmental adaptability 7% higher than the similar products. Without auxiliary air intake heating device, the cold starting temperature is -15℃.
  • Frame type high strength alloy engine body, one-piece cylinder head and rear gear chamber result in small volume, light weight, high reliability and a noise of 3dB (A) lower than similar products.
  • By reference to SPS manufacturing standard of German Volkswagen, the average overhaul period is over 15000h, which is 50% longer than similar products.
Model Type Displacement (L) Rated Power（KW） Rated Power（HP） Speed (rpm) Aspiration Fuel Control System Output Interface Weight (kg) Certificate Emission
SC4H100CA 4 Cylinders / In-Line 4.3 63 85 1500 T Mechanical SAE 1#/14' or SAE 3#/11.5' 495 CCS /
SC4H110CA 4 Cylinders / In-Line 4.3 70 95 1800 T Mechanical CCS /
SC4H100CA2 4 Cylinders / In-Line 4.3 64 87 1800 TA Mechanical 540 CCS /
SC4H110CA2 4 Cylinders / In-Line 4.3 70 95 1800 TA Mechanical CCS /
SC4H125CA2 4 Cylinders / In-Line 4.3 80 108 1500 TA Mechanical CCS /
SC4H140CA2 4 Cylinders / In-Line 4.3 90 122 1500 TA Mechanical CCS /
SC4H150CA2 4 Cylinders / In-Line 4.3 98 133 1800 TA Mechanical CCS /
SC4H170CA2 4 Cylinders / In-Line 4.3 110 150 1800 TA Mechanical CCS IMO TIER II
SC7H175CA2 6 Cylinders / In-Line 6.5 112 152 1500 TA Mechanical 675 CCS IMO TIER II
SC7H190CA2 6 Cylinders / In-Line 6.5 121 165 1800 TA Mechanical CCS IMO TIER II
SC7H195CA2 6 Cylinders / In-Line 6.5 125 170 1500 TA Mechanical CCS IMO TIER II
SC7H220CA2 6 Cylinders / In-Line 6.5 140 190 1800 TA Mechanical CCS IMO TIER II
SC7H235CA2 6 Cylinders / In-Line 6.5 150 204 2100 TA Mechanical CCS IMO TIER II
SC7H250CA2 6 Cylinders / In-Line 6.5 162 220 2300 TA Mechanical CCS IMO TIER II
