K Series Marine Engine
K Series Marine Engine K Series Marine Engine K Series Marine Engine

K Series Marine Engine

Description

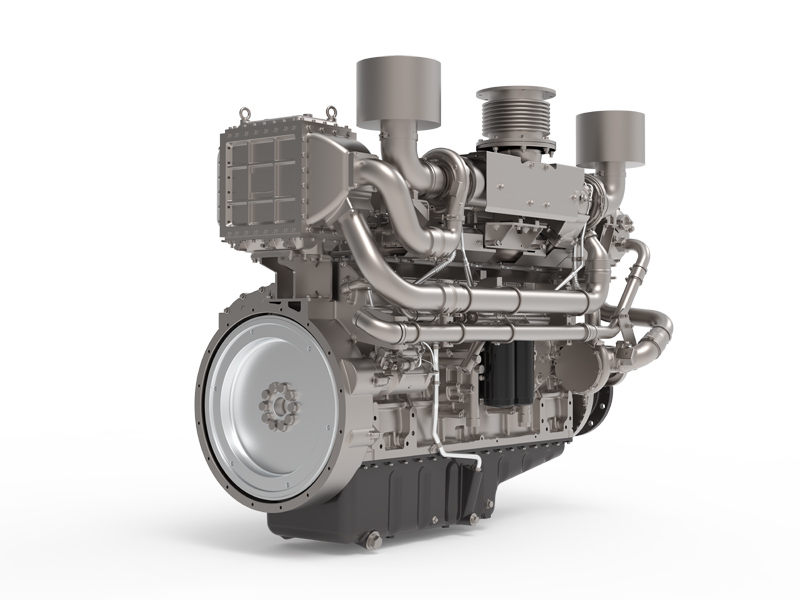

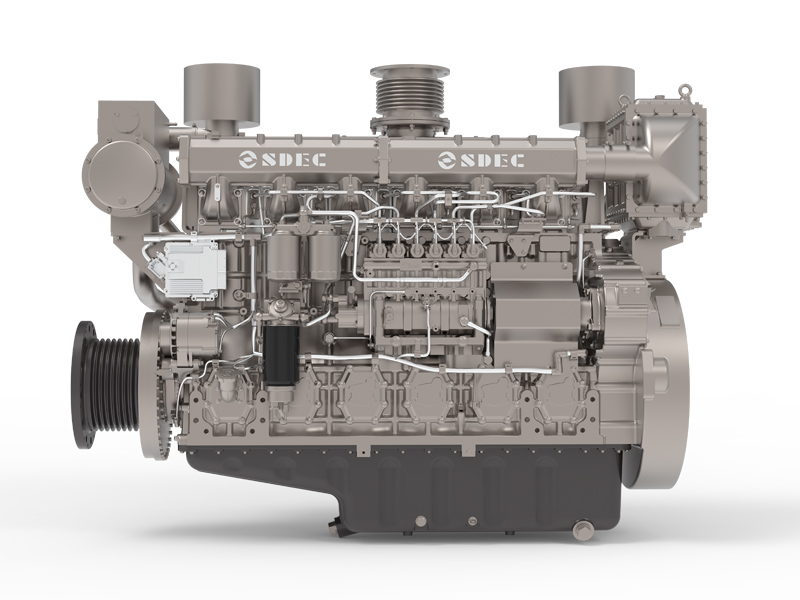

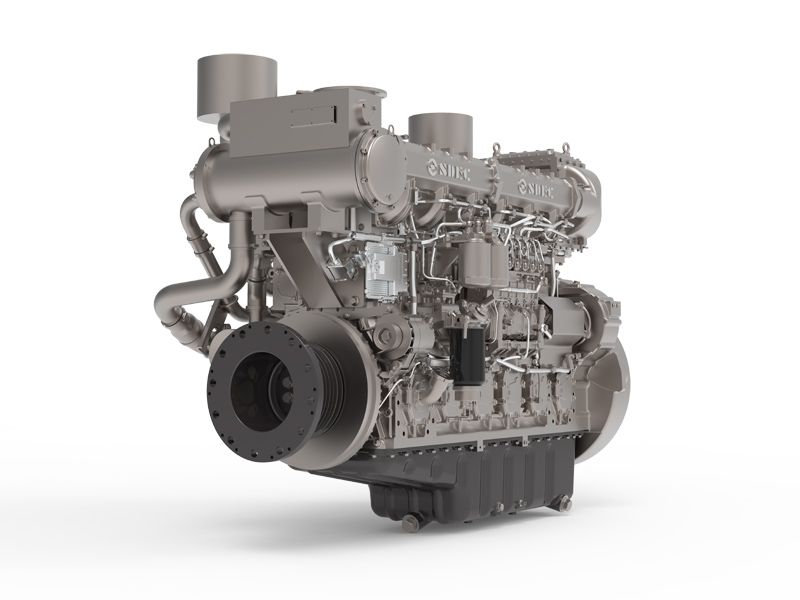

The K series engine is a medium to high speed marine diesel engine developed by SDEC, relying on many years of experience in marine engine design and development, and absorbing excellent and mature technologies from both home and abroad. The marine engine can adapt to various working conditions, and features superior performance compared with similar engines in the industry. It’s characterized by compact structure, high reliability, low noise, improved fuel efficiency, aesthetic appearance, and is applicable to various inland cargo ships, fishing boats, engineering ships, transportation ships, 300-600kW marine generator sets, etc.

Request a Quote
Type In-Line Type, Water-Cooled, 4-Stroke, Wet Cylinder Liners
Bore/Stroke 170x185mm
Min. Fuel Consumption 185g/kW.h
Starting Method Air Start, Electric Start, Air/Electric Start
Firing Sequence 1-5-3-6-2-4
Noise ≤115dB（A）
Crankshaft Rotation Direction (facing the flywheel) Counterclockwise
Cylinder No. 6
Displacement 25.2L
Oil Consumption 0.5g/kW.h
Certificate CCS/IMOⅡ
Flywheel and Flywheel Housing SAE0#&18#
Engine Overhaul Period 20000h
Dimensions (LxWxH) 2108x1088x165mm
Net Weight 2850kg
  • Manufactured according to high standards, advanced and reliable
    The K series was developed strictly according to SAIC’s GPDP standard process. With an integrated engine design, the marine engine comes with high-strength body and cylinder head, and forged steel crankshaft, and core components which are all supplied by well-known brands. It has an average engine overhaul period of over 20000 hours.
  • Strong power and high fuel efficiency
    Designed with four valves, dual turbocharged structure, fully efficient air intake, and dual electronic control unit, etc., the marine engine are available with two types including high power engine with electronically controlled high pressure common rail, and low power engine with electronically controlled pump. With wide power and torque range, the engine is applicable to various working conditions with medium and heavy load requiring high torque. The minimum fuel consumption reaches 190g/kW•h, which saves more than 10% fuel than similar products in the market.
  • Strong adaptability and various configuration
    Users choose different models according to different working conditions, among which 33W marine engine is suitable for high speed working conditions, and 38W is suitable for medium to low speed working conditions. Engine starting method, output interface, seawater pump with different flow rates, anti-corrosion cooling system, pre supply oil pump and other configurations are optional.
  • Comfortable and environmentally friendly, superior NVH (Noise, Vibration and Harshness)
    The engine has a compact structure and attractive appearance. The NVH optimization design of the engine effectively reduces vibration and noise, improving the comfort of crew and passengers.
  • Long interval maintenance in a convenient manner
    Due to modular design, extremely few faults will occur. The marine engine is designed with one cylinder and one head, making operation and maintenance more convenient.
Model Type Displacement (L) Rated Power（kW） Rated Power（HP） Speed(rpm) Aspiration Fuel Control System Output Interface Weight (kg) Certificate Emission
SC25K880.18CA21 6 Cylinders / In-Line 25.2 637 866 1800 TA ECU+CR SAE 0#/18' 2850 CCS IMO TIER II
SC25K800.18CA1 6 Cylinders / In-Line 25.2 576 783 1800 TA EUP CCS IMO TIER II
SC25K760.18CA1 6 Cylinders / In-Line 25.2 545 741 1800 TA EUP CCS IMO TIER II
SC25K700.18CA1 6 Cylinders / In-Line 25.2 505 686 1800 TA EUP CCS IMO TIER II
SC25K650.18CA1 6 Cylinders / In-Line 25.2 468 636 1800 TA EUP CCS IMO TIER II
SC25K600.18CA1 6 Cylinders / In-Line 25.2 432 588 1800 TA EUP CCS IMO TIER II
SC25K800.15CA1 6 Cylinders / In-Line 25.2 576 783 1500 TA EUP CCS IMO TIER II
SC25K760.15CA1 6 Cylinders / In-Line 25.2 545 741 1500 TA EUP CCS IMO TIER II
SC25K665.15CA1 6 Cylinders / In-Line 25.2 480 652 1500 TA EUP CCS IMO TIER II
SC25K620.15CA1 6 Cylinders / In-Line 25.2 447 608 1500 TA EUP CCS IMO TIER II
SC25K670.13CA1 6 Cylinders / In-Line 25.2 480 652 1350 TA EUP CCS IMO TIER II
SC25K580.13CA1 6 Cylinders / In-Line 25.2 417 567 1350 TA EUP CCS IMO TIER II
