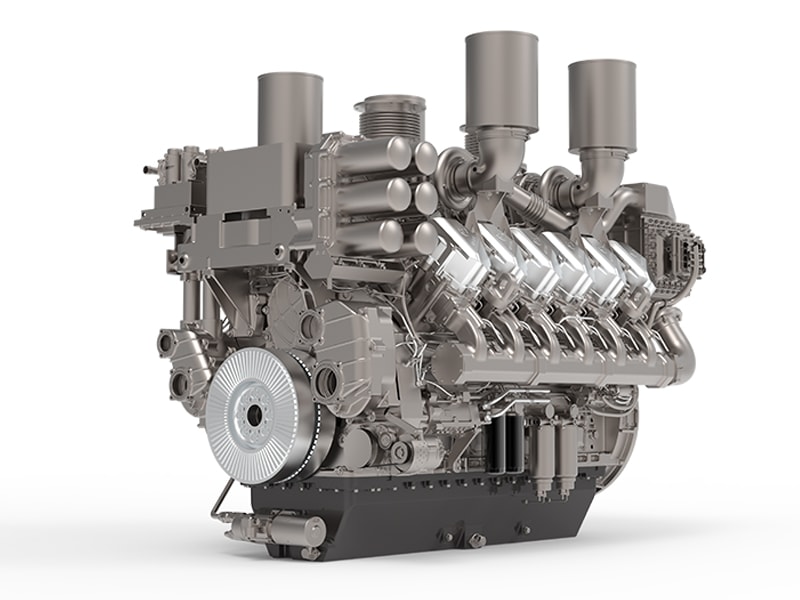

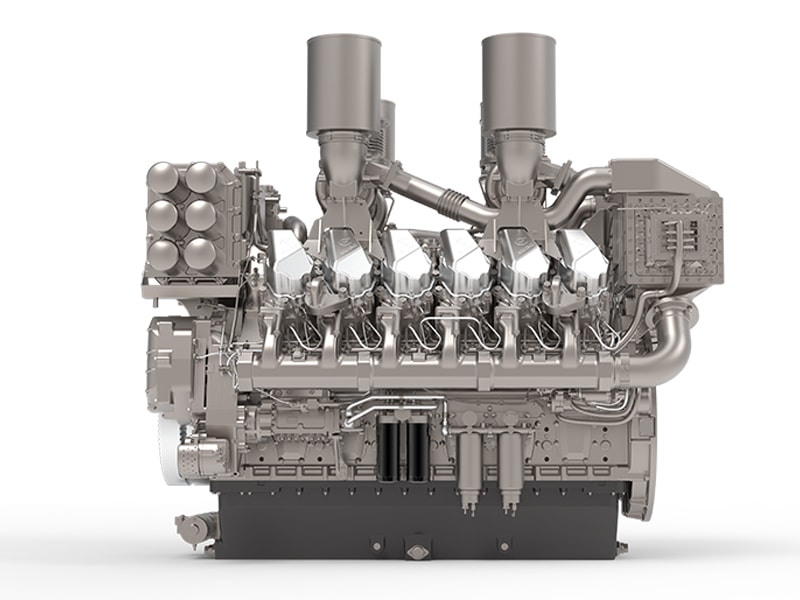

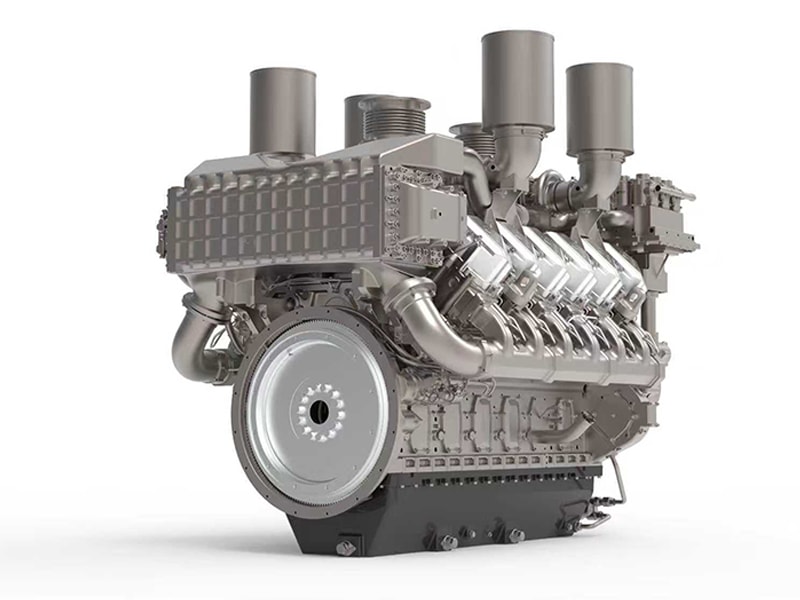

VK Series Diesel Engine for Genset
VK Series Diesel Engine for Genset VK Series Diesel Engine for Genset VK Series Diesel Engine for Genset

VK Series Diesel Engine for Genset

Features
  • Deep-Skirt Cylinder Block: Durable structure helps minimize engine vibration and reduce noise levels
  • Individual Cylinder Head: Features inspection windows on the side of the engine body for easy servicing and maintenance
  • High-Strength Forged Components: One-piece forged crankshaft and serrated connecting rod can withstand the mechanical loads generated during operation
  • Four-Valve Design & Common Rail Fuel System: 4-valve structure paired with an electronically controlled high-pressure common rail fuel system enables multi-injection, reducing engine noise and vibration while lowering emissions.
Request a Quote
Specifications
  • W Series Diesel Engine for Genset
  • W Series Diesel Engine for Genset
ModelUnit12KTA58-G3112KTA58-G3212KTA58-G3312KTA58-G3412KTA58-G3512KTA58-G3612KTA58-G3712KTA58-G334
(Compatible with Indonesian B50 biodiesel)
Engine Type V-type, 4-stroke, direct injection, turbocharged, air-to-water intercooled
Aspiration Turbocharged and intercooled
No. of Cylinders×Bore×Strokemm12×170×210
Cylinder Liner Type Wet liner
Compression Ratio 18:1
DisplacementL57.2
Fuel System High-pressure common rail
Rated PowerkW20101850172015601420128011601560
Rated Speedrpm1500
Standby PowerkW22102035189017201560141012801720
Min. Fuel Consumptiong/kW·h188
Lubricating Oil CapacityL222-313
Cooling System CapacityL198.7
Engine Oil Consumptiong/kW·h≤0.3
Emission Standard STAGE III
Noise LeveldB(A)102
Net Weightkg7610

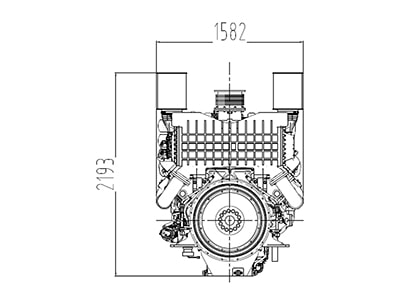

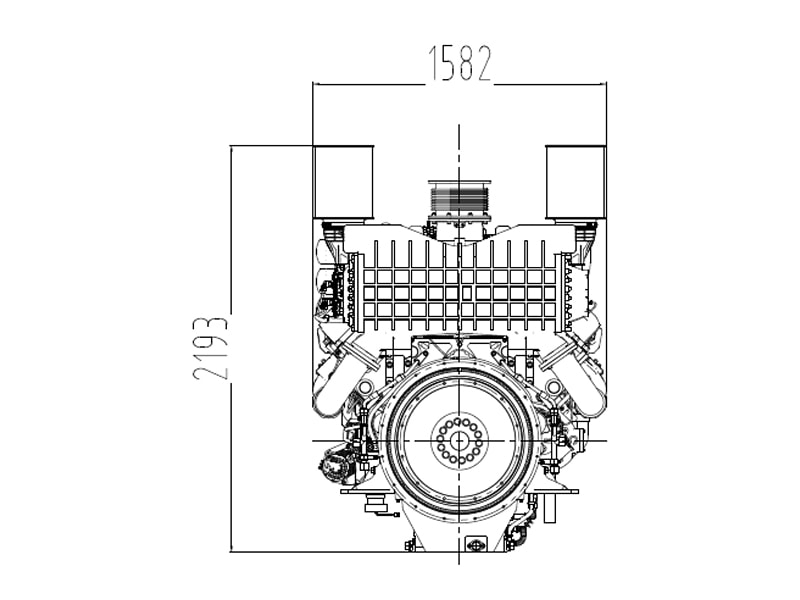

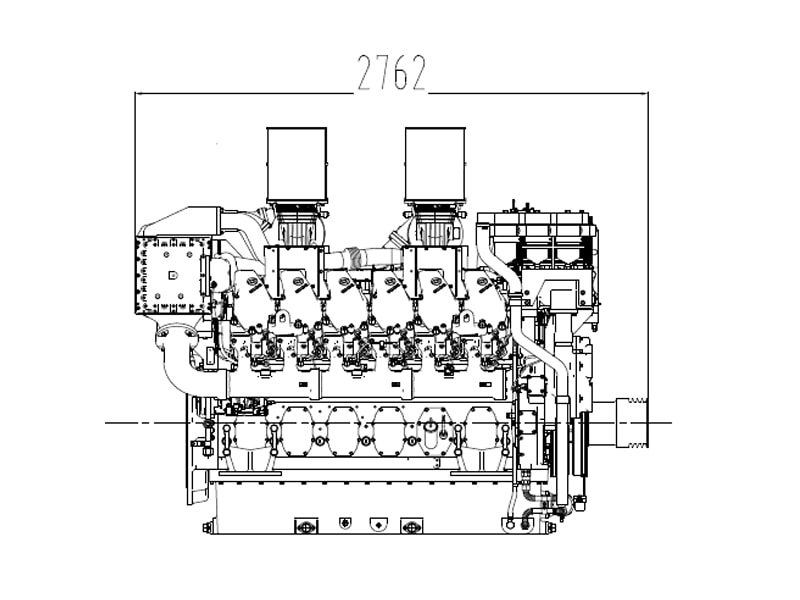

Dimensions (L×W×H)mm2762×1582×2193
Flywheel/Flywheel Housing SAE00#21"
