Coach Diesel Engine

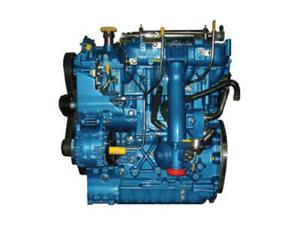

    1. R Series Diesel Engine This engine is introduced from the Italian VM Company, embodying advanced technology and sophisticated craft, and it is mounted in many of the worldwide best-selling vehicle models including Alfa Romeo.

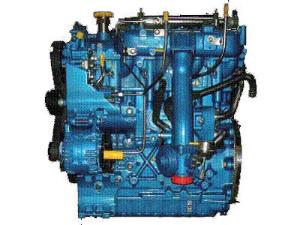

    1. R Series Bus Diesel Engine This R series bus diesel engine is a newly created after we become the member of Shanghai Automotive Industry Group. It performs with low emission that satisfies the China IV standard and the future China V standard.
Product Portfolio Table of Power in Passenger Car Market

Engine series Model Displacement Number ofcylinder Number of valve Emissions Rated power/ Rated rotating speed (kW/rpm) Maximum torque/ Maximum rotating speed (N.m/rpm) Oil injection/Gas injection system Applicable vehicle
High pressure common rail diesel engine R series SC25R 2.5 4 4 EURO III 74~100/3800 252~330 /1800 Bosch electrically controlled high pressure common rail LCV/LDV/SUV
SC28R 2.8 4 82~110/3600 285~360 /1800

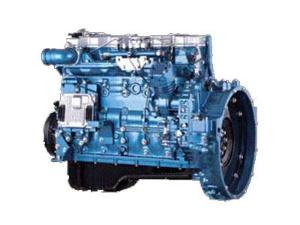

H series SC4H 4.3 4 4 EURO III 88~132/2300 ~2500 400~660 /1200 ~1600 Denso electrically controlled high pressure common rail 7~8m passenger vehicle
SC7H 6.5 6 4 132~192/2300 ~2500 660~1000 /1200 ~1600 8.5~11.5m passenger vehicle

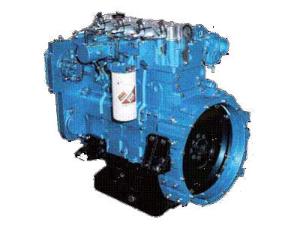

D series SC5DK 5.3 4 2 EURO III 118~162/2300 590~840 /1500 Denso electrically controlled high pressure common rail 7.9~9m passenger vehicle
SC8DK 8.3 6 2 140~192/2200 750~1100 /1400 10m and above passenger vehicle
SC9DK 8.8 6 2 192~228/2200 970~1250 /1400 10.5m and above passenger vehicle
SC9DF 8.8 6 4 EURO III 177~275/2200 823~1500 /1400 10.5m and above passenger vehicle

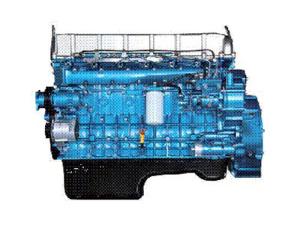

E series SC10E 10.4 6 4 213~294/1900 1300~1950/ 1100~1500 Bosch electrically controlled high pressure common rail 12m and above passenger vehicle
SC12E 11.8 6 4 283~353/1900 1800~2200 /1300 13.7m and above passenger vehicle

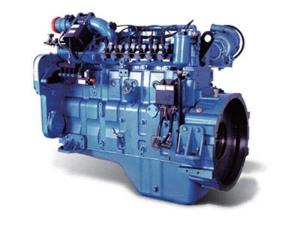

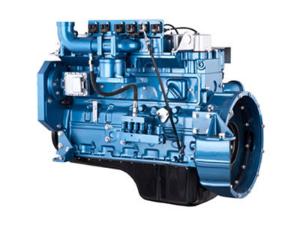

Natural gas engine HT series SC6HT 5.9 6 2 EURO III 125~155/2600 570~650/1500 Woodward 8~10.5m passenger vehicle
DT series SC5DT 5.3 4 2 Euro III 118~132/2300 580~650/ 1400~1600 Woodward/E-control 7.9~9m passenger vehicle
SC8DT 8.3 6 2 Euro IV 158~184/2200 800~920/ 1300~1400 10m and above passenger vehicle
SC9DT 8.8 6 2 Euro V 206~235/2200 1120~1250/ 1300~1400 10.5m and above passenger vehicle
