H Series Diesel Engine for Genset
H Series Diesel Engine for Genset4H H Series Diesel Engine for Genset7H

H Series Diesel Engine for Genset

Description

The H series diesel engine is a jointly designed unit between SDEC and UK Ricardo. We referred to the demands of the Chinese market combined with proven technology to develop a new and outstanding product. Adopting a GDPD development process, this series of engine is a world-class power platform created by following SATC Motor manufacturing standards. The H series engine offers a compact structure, wide power range, high reliability, efficiency, and low vibration and noise. The idle matching power ranges from 51-205kW for generator sets.

Request a Quote

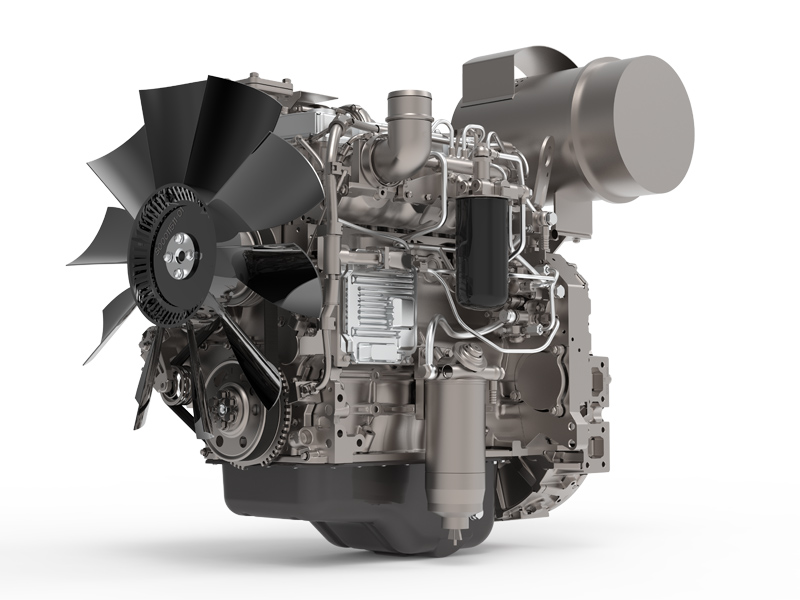

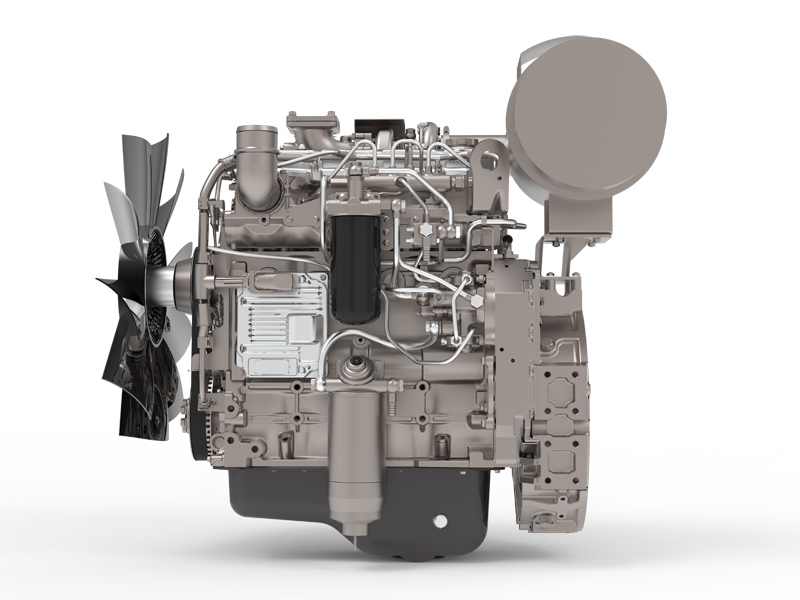

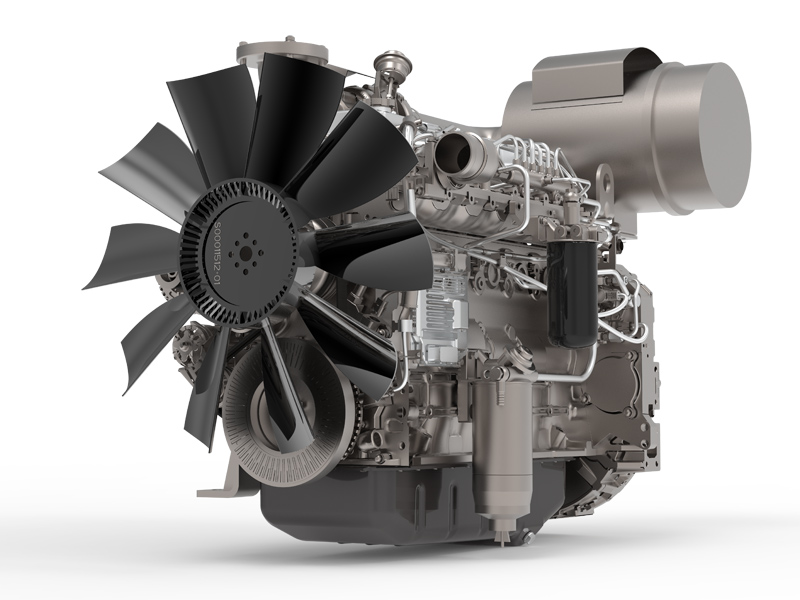

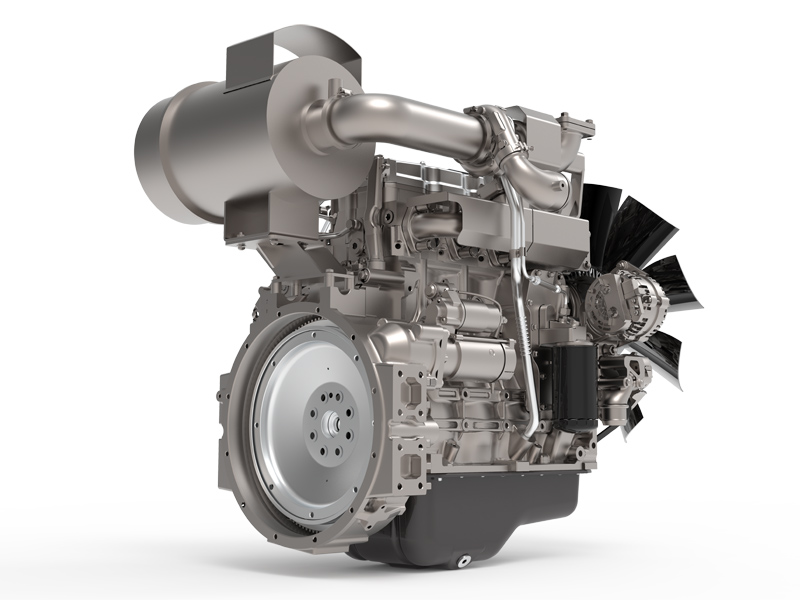

4H
  • H Series Diesel Engine for Genset
  • H Series Diesel Engine for Genset
  • H Series Diesel Engine for Genset
Model 4HTAA4.5 (G41-G46) 4HTAA4.3 (G31-G36) 4HTAA4.5 (G31-G32) SC4H (80-115D2) SC4H (140-180D2)
Type In-Line Type, Water-Cooled, 4-Stroke, Direct Injection, 4 Valves
Aspiration Turbo & Intercooler Turbo & Intercooler Turbo & Intercooler Turbo Turbo/Turbo Intercooled
Number of Cylinders×Bore×Stroke (mm) 4x108x124 4x105x124 4x108x124 4x105x124 4x105x124
Cylinder Liner Type Dry Liner Dry Liner Dry Liner Dry Liner Dry Liner
Compression Ratio 16:1 16:1 16:1 17.3:1 16:1
Displacement (L) 4.5 4.3 4.5 4.3 4.3
Speed Governing Rate (%) ≤5(Electronic Control) ≤5(Electronic Control) ≤5(Electronic Control) ≤5(Electronic Control) ≤5(Electronic Control)
Rated Power (kW) 51-120 51-125 125 56-78 95-120
Rated Speed (rpm) 1500 1500-1800 1500 1500 1500
Standby Power (kW) 56-132 56-140 140-155 62-86 105-132
Min. Fuel Consumption (g/kW.h) 192 192 192 195 195
Exhaust Smoke (FSN) ≤1 ≤1 ≤1 ≤1 ≤1
Lube Oil Capacity (L) 11-15 11-13 11-15 11-13 11-13
Cooling System Capacity (L) 6.8 6.8 6.8 6.8 6.8
Engine Oil Consumption (g/kW.h) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
Emission Standards STAGE IV STAGE III STAGE III STAGE II STAGE II
Noise (dB-A) 96 96 96 96 96
Net Weight (kg) 430 400 400 430 430-460
Dimensions (L×W×H) (mm) 1150×690×1230 1037×728×1024 1037×728×1024 1012×723×1102 1053×728×1158
Flywheel housing/ Flywheel SAE3#&11.5# SAE3#&11.5# SAE3#&11.5# SAE3#&11.5# SAE3#&11.5#

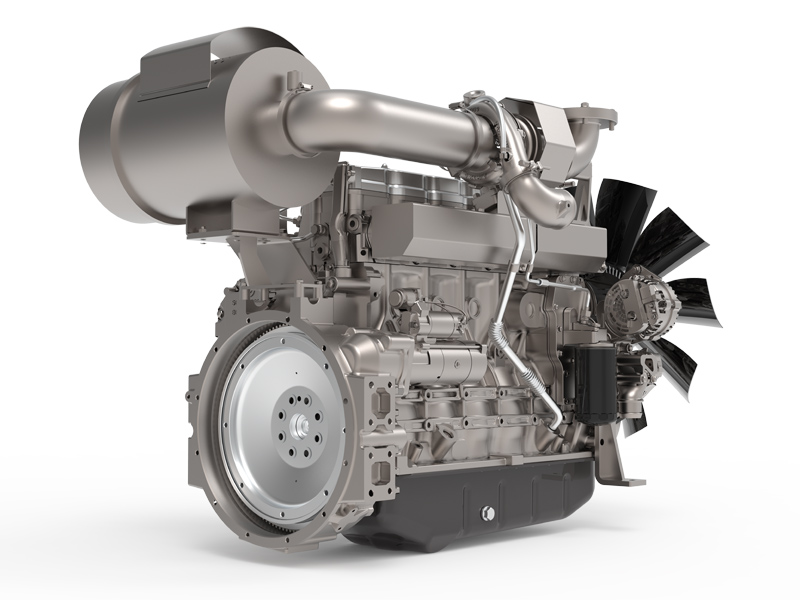

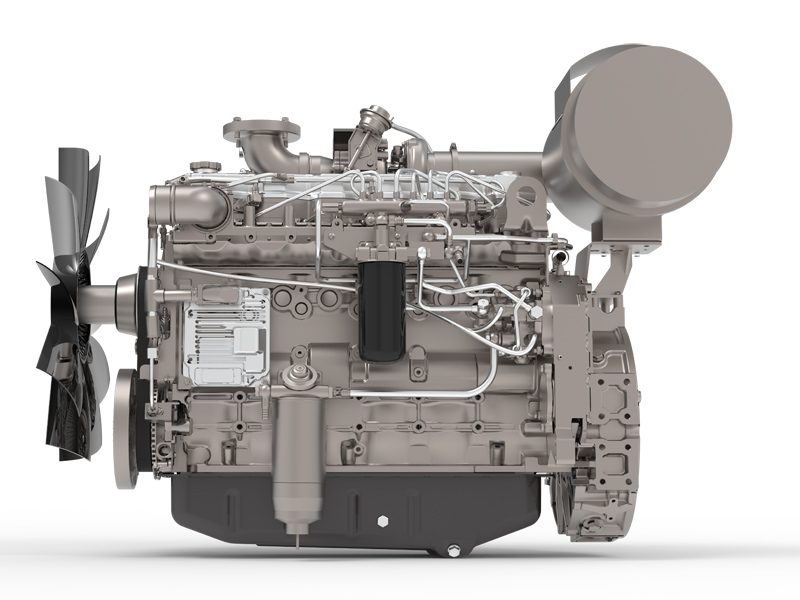

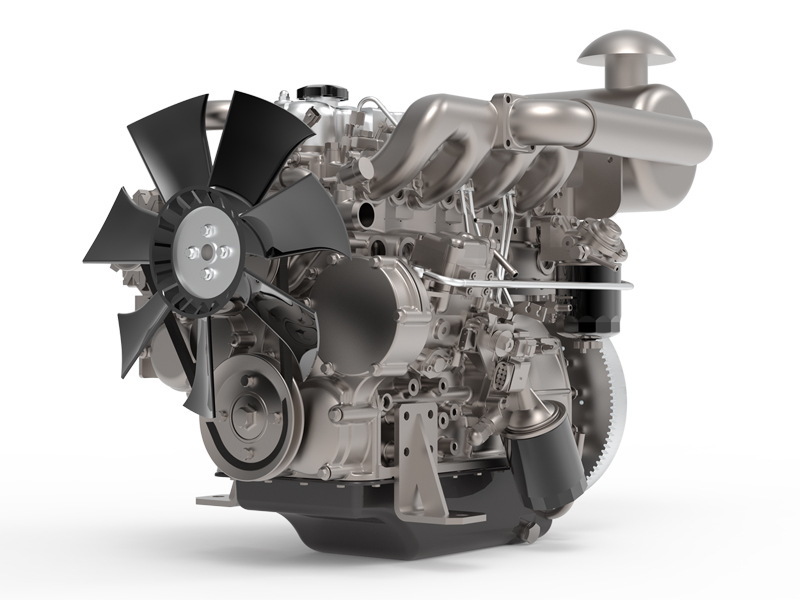

7H
  • H Series Diesel Engine for Genset
  • H Series Diesel Engine for Genset
  • H Series Diesel Engine for Genset
Model 6H7.2 (G41-G44) 6H6.5 (G31-G35) SC7H (180-250D2)
Type In-Line Type, Water-Cooled, 4-Stroke, Direct Injection, 4 Valves
Aspiration Turbo & Intercooler Turbo & Intercooler Turbo & Intercooler
Number of Cylinders×Bore×Stroke (mm) 6X108X124 6X105X124 6X105X124
Cylinder Liner Type Dry Liner Dry Liner Dry Liner
Compression Ratio 16:01 16:01 16:01
Displacement (L) 7.2 6.5 6.5
Speed Governing Rate (%) ≤5(Electronic Control) ≤5(Electronic Control) ≤5(Electronic Control)
Rated Power (kW) 128-168 128-205 120-168
Rated Speed (rpm) 1500 1500-1800 1500
Standby Power (kW) 141-185 141-226 132-185
Min. Fuel Consumption (g/kW.h) 192 192 195
Exhaust Smoke (FSN) ≤1 ≤1 ≤1
Lube Oil Capacity (L) 15-19 15-17.5 15-17.5
Cooling System Capacity (L) 9.6 9.6 9.6
Engine Oil Consumption (g/kW.h) ≤0.3 ≤0.3 ≤0.3
Emission Standards Stage IV Stage III Stage II
Noise (dB-A) 96 96 96
Net Weight (kg) 580 550 600
Dimensions (L×W×H) (mm) 1380×800×1250 1330×789×1033 1330×789×1024
Flywheel housing/ Flywheel SAE3#&11.5# SAE3#&11.5# SAE3#&11.5#
  • The four-valve structure and optimized designs of the airway eddy current ratio and combustor allow for higher air intake efficiency. With the adoption of the P7100 injection pump, the, injector layout of vertical and middle positioning, and new fuel atomization mixing technology, fuel consumption of the engine is reduced by 8-10%.
  • The B10 life of the cylinder block is more than 10000 working hours with excellent reliability.
  • With an electronic governor, the regulation accuracy is high to effectively control the state characteristics of the engine.
  • An integral cylinder head, rear gear chamber, resilient coupling and modular design make this engine small, lightweight, and they minimize vibration and noise.
  • Without an air intake heating auxiliary device, the cold starting temperature limit is -10℃ and the adaptive capacity to environment is strong.
  • This series engine can meet the Off-Road China Ⅱ Emissions Standard.
Typical Generator Capacity (kVA) Diesel Engine Model Engine Output (kW) Type
50HZ 60Hz 1500rpm 1800rpm Cylinder Flywheel & Housing Fuel System Emission
Prime
(PRP) 		Standby
(ESP) 		Prime
(PRP) 		Standby
(ESP) 		Prime Standby Prime Standby
55 63 / / SC4H80D2 56 62 / / L4 SAE 3#11.5# m-FIP+e-gov. CN II
63 70 / / SC4H95D2 62 68 / / L4 SAE 3#11.5# m-FIP+e-gov. CN II
80 88 / / SC4H115D2 78 86 / / L4 SAE 3#11.5# m-FIP+e-gov. CN II
113 125 / / SC4H160D2 105 116 / / L4 SAE 3#11.5# m-FIP+e-gov. CN II
125 138 / / SC4H180D2 120 132 / / L4 SAE 3#11.5# m-FIP+e-gov. CN II
63 69 69 75 4HT4.3-G22 62 68 67 74 L4 SAE 3#11.5# m-FIP+e-gov. CN II
69 75 80 88 4ZTAA4.1-G21 64 70 76 83 L4 SAE 3#11.5# m-FIP+e-gov. CN II
80 88 90 100 4HT4.3-G23 78 86 86 95 L4 SAE 3#11.5# m-FIP+e-gov. CN II
100 113 113 125 4HTAA4.3-G21 95 105 105 116 L4 SAE 3#11.5# m-FIP+e-gov. CN II
113 125 125 138 4HTAA4.3-G23 105 116 120 132 L4 SAE 3#11.5# m-FIP+e-gov. CN II
125 138 125 138 4HTAA4.3-G22 120 132 120 132 L4 SAE 3#11.5# m-FIP+e-gov. CN II
50 55 63 68 4HTAA4.3-G31 51 56 62 68 L4 SAE 3#11.5# ECR CN III
63 68 68 80 4HTAA4.3-G32 62 68 67 74 L4 SAE 3#11.5# ECR CN III
80 90 90 100 4HTAA4.3-G33 78 86 86 95 L4 SAE 3#11.5# ECR CN III
100 110 110 120 4HTAA4.3-G34 95 105 105 116 L4 SAE 3#11.5# ECR CN III
113 125 125 140 4HTAA4.3-G35 106 117 120 132 L4 SAE 3#11.5# ECR CN III
138 150 140 150 4HTAA4.3-G36 120 132 120 132 L4 SAE 3#11.5# ECR CN III
138 150 / / 4HTAA4.5-G32 125 140 / / L4 SAE 3#11.5# ECR CN III
/ 160 / / 4HTAA4.5-G31 / 155 / / L4 SAE 3#11.5# ECR CN III
170 188 / / SC7H230D2 154 170 / / L6 SAE 3#11.5# m-FIP+e-gov. CN II
188 206 / / SC7H250D2 168 185 / / L6 SAE 3#11.5# m-FIP+e-gov. CN II
138 150 150 165 6HTAA6.5-G21 128 141 136 150 L6 SAE 3#11.5# m-FIP+e-gov. CN II
150 165 160 175 6HTAA6.5-G22 140 155 150 165 L6 SAE 3#11.5# m-FIP+e-gov. CN II
188 206 206 225 6HTAA6.5-G23 168 185 180 198 L6 SAE 3#11.5# m-FIP+e-gov. CN II
138 150 150 160 6HTAA6.5-G31 128 141 136 150 L6 SAE 3#11.5# ECR CN III
150 160 160 180 6HTAA6.5-G32 140 155 150 165 L6 SAE 3#11.5# ECR CN III
169 185 185 200 6HTAA6.5-G35 155 170 170 187 L6 SAE 3#11.5# ECR CN III
188 200 200 220 6HTAA6.5-G33 168 185 180 198 L6 SAE 3#11.5# ECR CN III
/ 275 / / 6HTAA7.2-G31 / 250 / / L6 SAE 3#11.5# ECR CN III
225 250 / / 6HTAA7.2-G32 208 228 / / L6 SAE 3#11.5# ECR CN III

Notes: m-FIP: mechanical fuel injection pump; e-gov: electronic governor
