W Series
Diesel Engine for Genset Power range: 660-1230kW
  • Home
  • Products
  • Engine for Genset
  • W Series Diesel Engine for Genset

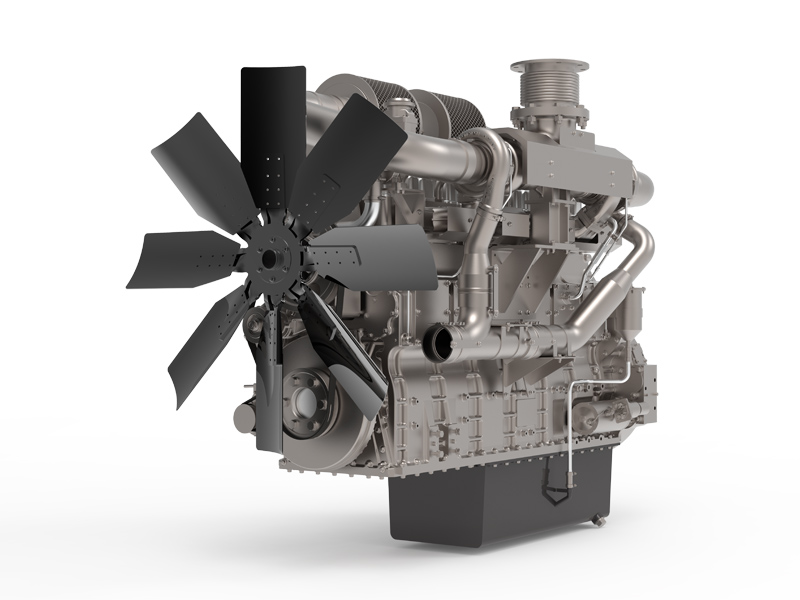

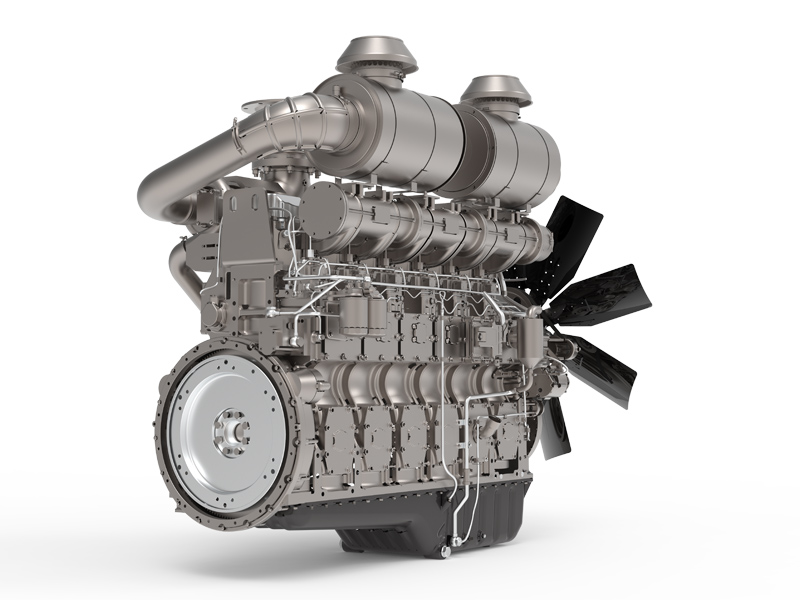

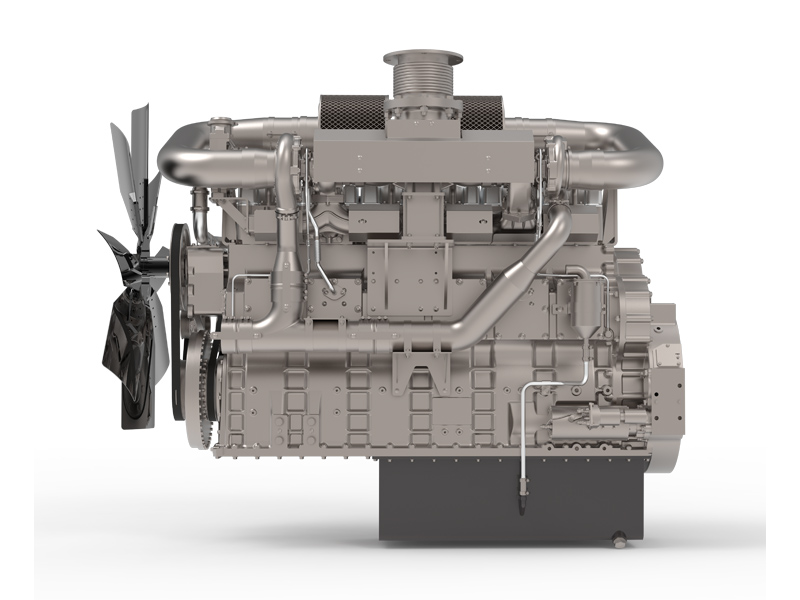

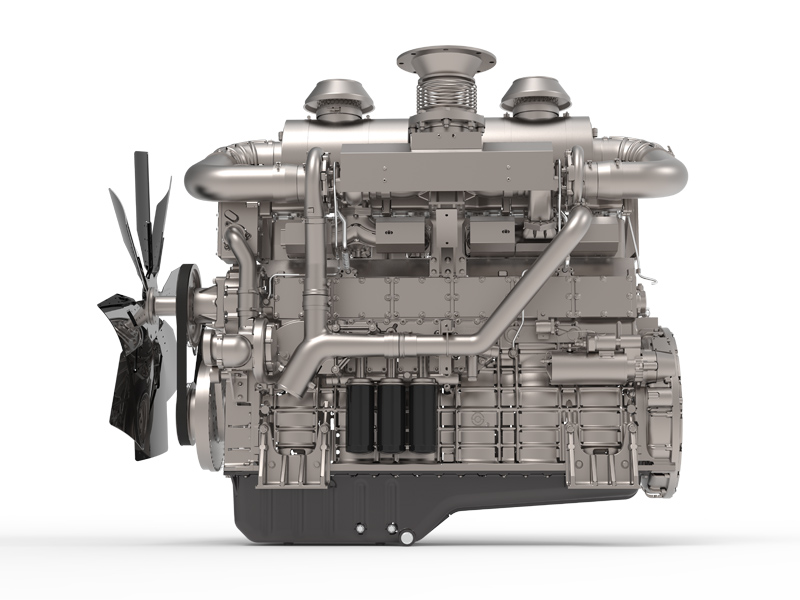

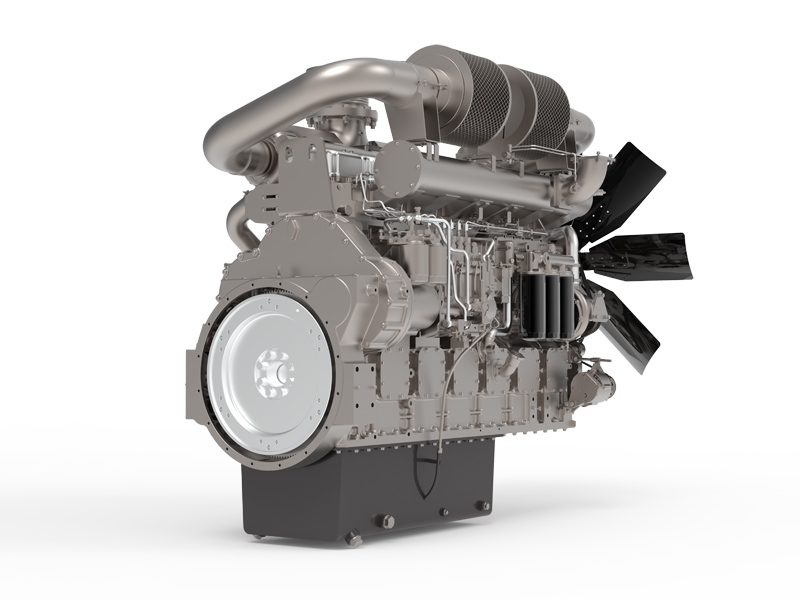

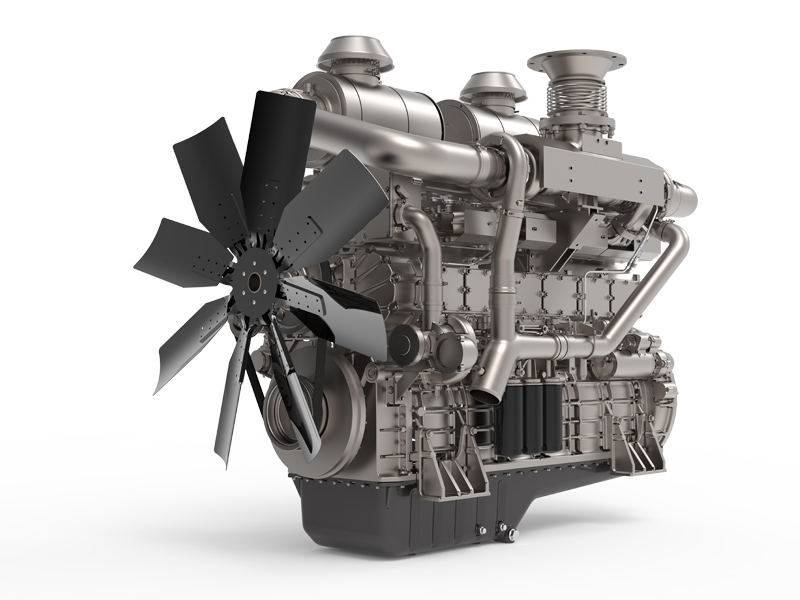

W Series Diesel Engine for Genset
W Series Diesel Engine for Genset33W W Series Diesel Engine for Genset35W

W Series Diesel Engine for Genset

Description

The W series industrial diesel engine for commercial generators is a completely redesigned and engineered engine to meet the high power demands of the generator set market. All of its technical indexes have reached internationally advanced levels. This series of engines features a compact structure, high reliability, efficiency, and low noise output. It is the preferred matching power unit for 600kW general generator sets produced according to SAIC Motor manufacturing standards.

Request a Quote
  • Specifications
  • Features
  • Technical parameters
33W
  • W Series Diesel Engine for Genset
  • W Series Diesel Engine for Genset
  • W Series Diesel Engine for Genset
Model SC33W (990-1150D2)
Type In-Line Type, Water-Cooled, 4-Stroke, Direct Injection, 4 Valves
Aspiration Turbo & Intercooler
Number of Cylinders×Bore×Stroke (mm) 6x180x215
Cylinder Liner Type Wet Liner
Compression Ratio 15:01
Displacement (L) 32.8
Speed Governing Rate (%) ≤5
Rated Power (kW) 660-782
Rated Speed (rpm) 1500
Standby Power (kW) 726-860
Min. Fuel Consumption
(g/kW.h)
205
Exhaust Smoke (FSN) 1
Lube Oil Capacity (L) 75~100
Cooling System Capacity (L) 56
Engine Oil Consumption (g/kW.h) ≤0.5
Emission Standards Stage II
Noise (dB-A) 118
Net Weight (kg) 3700
Dimensions (L×W×H) (mm) 2307×1371×1983
Flywheel housing/ Flywheel SAE0#&18#

35W
  • W Series Diesel Engine for Genset
  • W Series Diesel Engine for Genset
  • W Series Diesel Engine for Genset
Model 6WTAA35 (G31-G311)
Type In-Line Type, Water-Cooled, 4-Stroke, Direct Injection, 4 Valves
Aspiration Turbo & Intercooler
Number of Cylinders×Bore×Stroke (mm) 6x186x215
Cylinder Liner Type Wet Liner
Compression Ratio 16:01
Displacement (L) 35.1
Speed Governing Rate (%) ≤5(Electronic speed control)
Rated Power (kW) 818-1118
Rated Speed (rpm) 1500
Standby Power (kW) 900-1230
Min. Fuel Consumption (g/kW.h) 195
Exhaust Smoke (FSN) 0.5
Lube Oil Capacity (L) 75~100
Cooling System Capacity (L) 78
Engine Oil Consumption (g/kW.h) ≤0.3
Emission Standards STAGE III
Noise (dB-A) 118
Net Weight (kg) 4000
Dimensions (L×W×H) (mm) 2429x1387x2142 2429x1422x2019
Flywheel housing/ Flywheel SAE0#&18#
  • The use of four valves per cylinder, an electronic governor and P11 high pressure oil pump can effectively improve combustion and emission to deliver smooth operation and efficiency.
  • With a gantry cylinder block, rear gear chamber and reasonably distributed strengthening rib, the engine features good rigidity, compact structure, and minimal vibration and noise.
  • The split camshaft design ensures accurate control of valve and injection timing. The optimized cam profile can reduce impact force and improve the reliability and durability.
  • Equipped with an electronically controlled priming oil pump, the automatic oil pre-supply is achieved when starting up.
  • This engine satisfies Off-Road China II emission standards.
Typical Generator Capacity (kVA) Diesel Engine Model Engine Output (kW) Type
50Hz 60Hz 1500rpm 1800rpm Cylinder Flywheel & Housing Fuel System Emission
Prime
(PRP)
Standby
(ESP)
Prime
(PRP)
Standby
(ESP)
Prime Standby Prime Standby
750 825 / / SC33W990D2 660 726 / / L6 SAE 0#18# m-FIP+e-gov. CN II
875 975 / / SC33W1150D2 782 860 / / L6 SAE 0#18# m-FIP+e-gov. CN II
900 1000 / / 6WTAA35-G32 818 900 / / L6 SAE 0#18# EUI CN III
1000 1100 / / 6WTAA35-G31 882 970 / / L6 SAE 0#18# EUI CN III
1125 1250 / / 6WTAA35-G310 1018 1120 / / L6 SAE 0#18# EUI CN III
1250 1375 / / 6WTAA35-G311 1118 1230 / / L6 SAE 0#18# EUI CN III

Notes: m-FIP: mechanical fuel injection pump; e-gov: electronic governor
