C Series Diesel Engine for Construction Machinery

Description

The SDEC C series heavy equipment engine is regarded as the top choice for construction machinery, due to its reliability. With a power range of 135 KW to 235 KW, it satisfies Chinese III emission standards, making it the preferred power choice for Chinese exported construction equipment and top domestic customers.

This C series engine incorporates the 3306 series diesel engine technology from the American company CATERPILLAR and also introduces the main processing, inspection and testing equipment of this series of products. In 2006, our company worked with the German company FEV to upgrade this engine series, thus improving its performance, reducing fuel consumption and meeting higher emission requirements. This achieved a combination of adaptability, economy and high reliability. The cost performance of this product was also improved, making it a popular choice on the market.

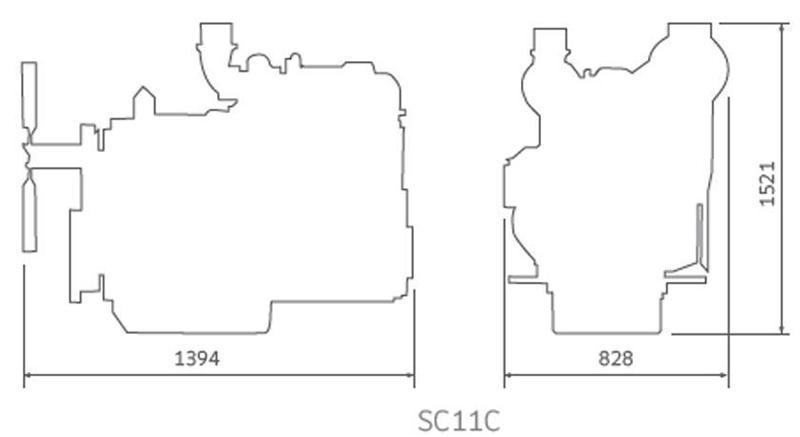

Outline dimensional drawing
C Series Diesel Engine for Construction Machinery
Technical parameters
Diesel Engine Engine Model Displacement (L) Aspiration Rated Power Peak Torque Solution Emissions Level
kW r/min N*m r/min
11C SC11CB184 10.5 TA 135 1850 950 1300 EGR China III
11C SC11CB195 10.5 TA 140 1900 900 1400 EGR China III
11C SC11CB200 10.5 TA 147 2200 850 1400 EGR China III
11C SC11CB200.1 10.5 TA 147 1850 1000 1300 EGR China III
11C SC11CB220 10.5 TA 162 2200 1000 1400 EGR China III
11C SC11CB220.1 10.5 TA 162 2100 1050 1400 EGR China III
11C SC11CB220.2 10.5 TA 162 2000 1100 1400 EGR China III
11C SC11CB240 10.5 TA 175 2200 1030 1400 EGR China III
11C SC11CB240.1 10.5 TA 175 2000 1130 1400 EGR China III
11C SC11CB270 10.5 TA 200 2200 1050 1400 EGR China III
Note
Bore ×stroke (mm) Aspiration Engine Type Compression ratio Weight Solution
11C 121x152 TA Turbocharged and intercooled In-line, six cylinders 16.5:1 960kg CRS electronically controlled common rail EGR mechanical pump ＋ external EGR
Features
C series Technical features Customer value
Fuel system P series oil pump + external EGR solution 1.Low cost
2. It meets Off-Road China Ⅲ emission standards.
Aspiration method The turbocharger and intercooler are selected according to operating conditions. The power and torque are chosen for a higher air intake efficiency and fuel economy. 1. The power is strong, featuring a fast transient response and easy operation.
2. The specific fuel consumption is low.
Design features 1. The prototype engine was the CAT 3306 engine with a license, and featured a displacement of 10.5L, making it a popular choice for power in construction machinery. The maximum torque reserve is 50%.
2. In 2006, in working with the German company FEV, the performance upgrade was conducted in order to optimize the designs in the fuel system, cylinder head airway, camshaft profile and combustion chamber.
3. The design concept for common wear parts and the overall unit are used. Important rubbing parts are both reliable and durable.		 1. The design is reliable and durable.
2. It is popular with international customers.
Reliability features 1. We introduced a complete set of drawings and processing, inspection and testing equipment from Caterpillar.
2. By referencing an SPS system guarantee from German Volkswagen manufacturing standards, the product consistency is better.
3. The average failure period is over 4000 hours, and the overhaul period is more than 10,000 hours.
4. We have sold more than 1 million engines in this series.		 The quality is excellent.
Matching adaptability 1. The plateau adaptability is high without no power loss, even at an altitude as high as 4500m.
2. Without an auxiliary air intake heating device, the cold starting temperature is -15℃.
3. Based on the assembly configuration and actual operating conditions, the engine and assembly are conducted with matching optimization and customization.
4. Various configurations for flywheel, flywheel house, engine, air compressor, steering pump and other peripheral parts are available.		 The environment adaptability is strong with little downtime, and the engine series features an outstanding performance and wide application range.
Maintenance Maintenance networks and accessories supply networks are spread all over China. It is easy to get accessories with convenient service.
